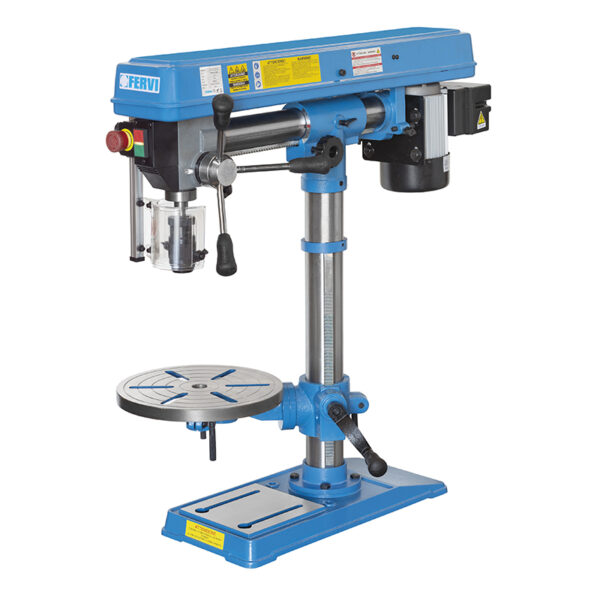

Radial drill press with drive belt

768,00 € +VAT

Art No: 757

Rotating and tilting table with double arm, tilting head, electrical system with separate 24V circuit for on-board machine controls.

Weight	53, 00 kg
Dimensions	885x450x265 h mm
Max drilling capacity on cast iron with pre-drilling hole	Ø 20 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)	Ø 16 mm
Continuous drilling capacity	Ø 12 mm
Spindle taper	CM 2
Chuck sizes	1 – 16 mm B16
Spindle speed	(12) 300 ÷ 2550 rpm
Page in Fervi 46 catalogue	46
Min. order	1
EAN	8012667179434
